Pressure Vessels

Pressure Vessels
Pressure Vessels
Product Code : 13
Product Description

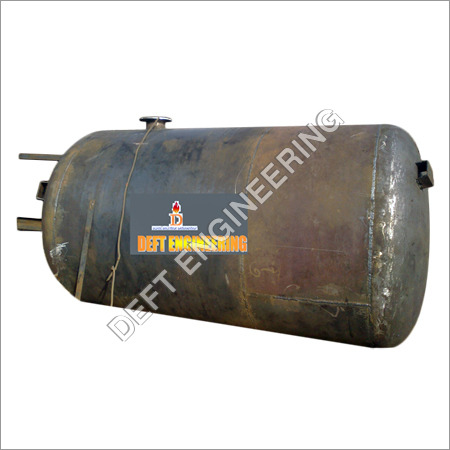

Owing to our vast experience in this domain, we have marked our prominence in manufacturing and supplying a wide gamut of Pressure Vessels. Owing to their high strength, dimensional accuracy and ability to withstand large amount of pressure, our vessels are highly demanded in the market. Stringent quality tests are conducted on these vessels, by our quality controllers to assure their high quality and flawlessness. Pressure Vessels are widely being used in petrochemical, pharmaceutical, chemical and various other engineering industries.





Other details:

Air storage tank has the function of air compression and air source pressure stabilization. Air pressure tank can eliminate or reduce the periodical air flow pulsation of the air compressor, stabilize the pressure in pipe, supply power to pipeline to finish the pneumatic program operation after machine halt. Meanwhile, the air storage tank can compress air, dewater, defecate, etc.

Various specifications are given below:

  • Product made with MS or SS.
  • we are specialized in 0.5 to 25 (m3) storage capacity.
  • all type of tests & third party inspections can arrange as per demand of customer.
  • Test certificate of Material can be provided if required.
  • Product will be made as per requirement of Customer but with in the parameters of IS & ASA.
  • The product can be modified as per demand & recommendation of Customer.
  • Horizontal & vertical both type of Tanks are available.

 Technical Specifications

Specification

Detail

NO.

Geometrical Volume of vessel

1 to 50 M³


Type

Vertical/Horizontal


Dish End Type

Semi ellipsoidal


Working Pressure

5 to 20.0 Kg/cm²g


Hydraulic Pressure

Up to20 Kg/cm²g


Design Temperature.

60�c


Material Specification

MS-2062 (Grade. - A)


Welding Specification

As per IS-2825.


Lag support -

man Hole-

Channel make

8 to 30 mm. flange type


Thickness of shell

6 to 30 MM.


Thickness of Dish end.

6 to 35 mm.


Other Details

  • Drain Valve
  • Inlet point
  • Out Let point
  • Safety valve Point
  • Pressure gauge 6� dial, H-guru make)
  • Extra Point 3/4�
  • 1 No.
  • 1 No.
  • 1 No.
  • 1 No.
  • 1 No.
  • 1 No.

External tank paint

Two coat of Primer & Two coats of Enamel paint.
