Electric Heating System

Electric Heating System
Electric Heating System
Product Code : 18
Product Description

We are reckoned as one of the prominent manufacturers and suppliers of high grade Electric Heating System. Offered product is manufactured using high grade components in strict adherence with global quality parameters. Owing to its robust construction, high performance and longer service life, our heating system is highly acclaimed by the customers. With our wide distribution network, we assure prompt delivery of this Electric Heating System to our esteemed clients.



Other details:

Manufacturer & Trader of Oil heating tank for core industrial user. We provide heating solutions by electric heaters steam coils etc with following specification.


S. No.

Specification

Detail

NO.

1.

Geometrical Volume of vessel

1 M3 to 50 M3


2.

Type

Vertical/ Horizontal


3.

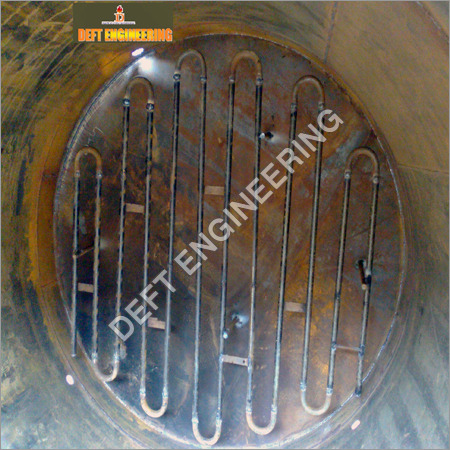

Steam coils

As per heating Requirement ( MS "C class pipe Shld. - 40)


3.1.

Heating capacity

25oC to 80oC (Max.)


3.2

Coil pressure Capacity

Up to 4 Kg/cm2g to 10 Kg/cm2g


4.

Hydraulic Pressure of Tank.

4 Kg/cm2g to 10 Kg/cm2g


5.

Design Temperature.

60�c


6.

Material Specification

MS-2062 /SS-304/SS-316 etc.


7.

Welding Specification

As per ASME


8.

Lag support -
man Hole-
Channel make
16� flange type


13.

Thickness of shell

4 mm to 20 mm.


14.

Thickness of Dish end.

6 mm. to 20 mm.


15.

Other Details

Drain point
Inlet valve( 50 NB)
Out Let valve(50 NB)
Temperature Indicator
Vent
Steam condensate point.
Ladder(in & Out)
Float Level Indicator
1 No.
1 No.
1 No.
1 No.
1 No.
1 No.
2 Nos.
1 No.

16.

External tank paint

Two coat of Primer & Two coats of Enamel paint.


17.

Internal Paint

Anti corrosive Heat resistance paint
